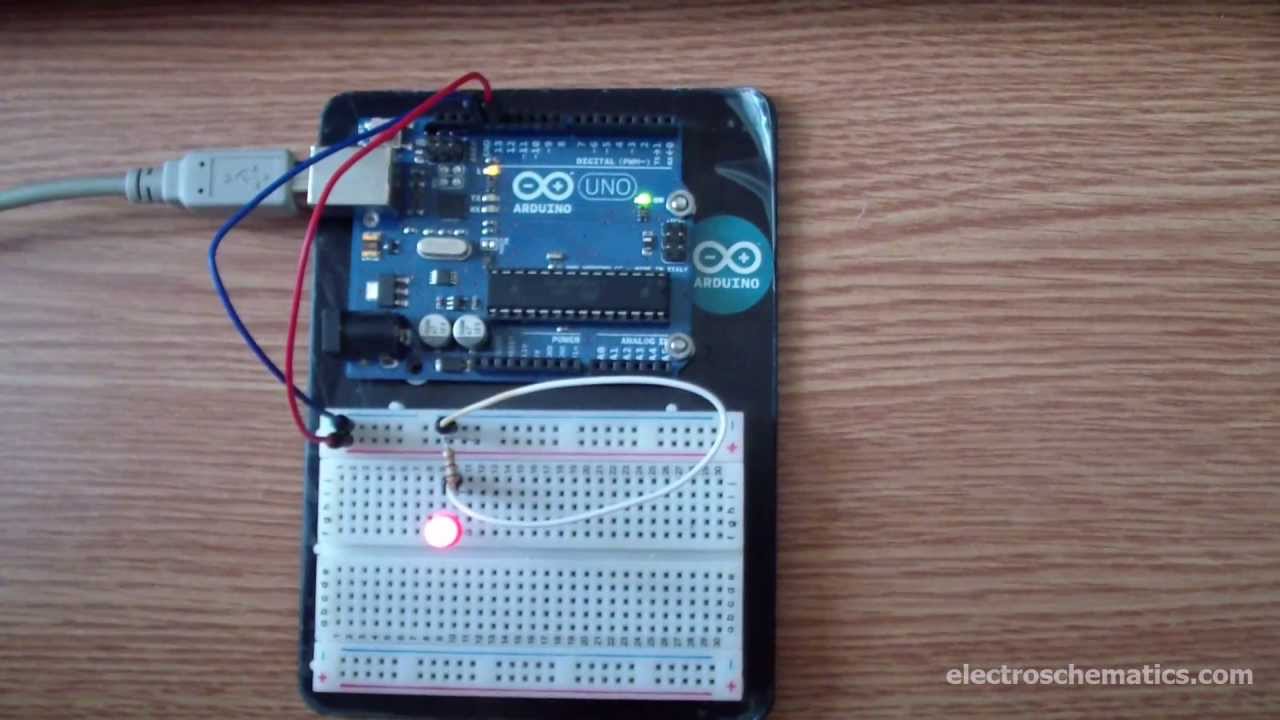

The "Blink" project is the most popular beginner project in Arduino. It’s often referred to as the "Hello World" of hardware programming because it teaches the very basics of controlling a microcontroller and interacting with electronic components.

Why This Project Matters

It introduces you to how digital pins work, how timing is controlled with code, and how circuits carry current to an output device such as an LED. Without this knowledge, more complex projects like robotics, IoT, or automation will be hard to build.

What You Need

• Arduino Uno board
• 1 LED (any color)
• 1 resistor (220Ω recommended)
• Breadboard and jumper wires
• USB cable to connect Arduino to your computer

Circuit Setup

1. Insert the LED into the breadboard.
2. Connect the longer leg (anode) to digital pin 13 via the resistor.
3. Connect the shorter leg (cathode) to the Arduino GND pin.
4. Plug the Arduino into your computer and upload the code.

Code

void setup() {
  pinMode(13, OUTPUT);
}
void loop() {
  digitalWrite(13, HIGH);
  delay(1000);
  digitalWrite(13, LOW);
  delay(1000);
}

Explanation: The LED turns ON for 1 second, OFF for 1 second, repeatedly. This shows how to write, upload, and execute code on Arduino.

Things to Try Next

• Change the delay to make it blink faster or slower.
• Use two LEDs to blink alternately.
• Create a pattern like SOS in Morse code.

Completing this project gives you confidence to move on to sensors, motors, and real-world IoT projects.

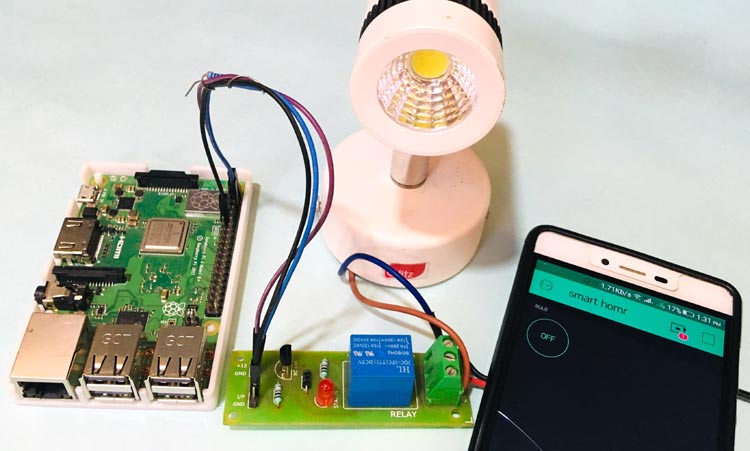

Imagine switching off your lights with your phone while sitting in another room—or even another country. That’s the power of IoT with Raspberry Pi. This project focuses on how a small computer can automate your home appliances with simple hardware and software setup.

Required Components

• Raspberry Pi (any version with Wi-Fi)
• Relay module (to control appliances)
• Smartphone with Blynk app
• Wires, breadboard, and basic tools
• Appliances like light bulbs or fans

How It Works

The relay acts as a digital switch controlled by the Raspberry Pi’s GPIO pins. When the Pi receives a command from the smartphone app, it sends signals to the relay, turning devices ON or OFF instantly.

Setup Steps

1. Install Raspberry Pi OS and connect your Pi to Wi-Fi.
2. Install the Blynk app on your phone and create a project.
3. Wire the relay to a GPIO pin of the Pi.
4. Write a Python script to connect the Pi with Blynk.
5. Upload and run the script—your home automation is live!

Applications

• Control lights and fans remotely.
• Automate irrigation systems for gardens.
• Schedule devices to turn on/off at set times.
• Save electricity by monitoring usage patterns.

With home automation, you not only save energy but also improve convenience and safety. Once this foundation is ready, you can add voice assistants like Alexa or Google Home for advanced features.

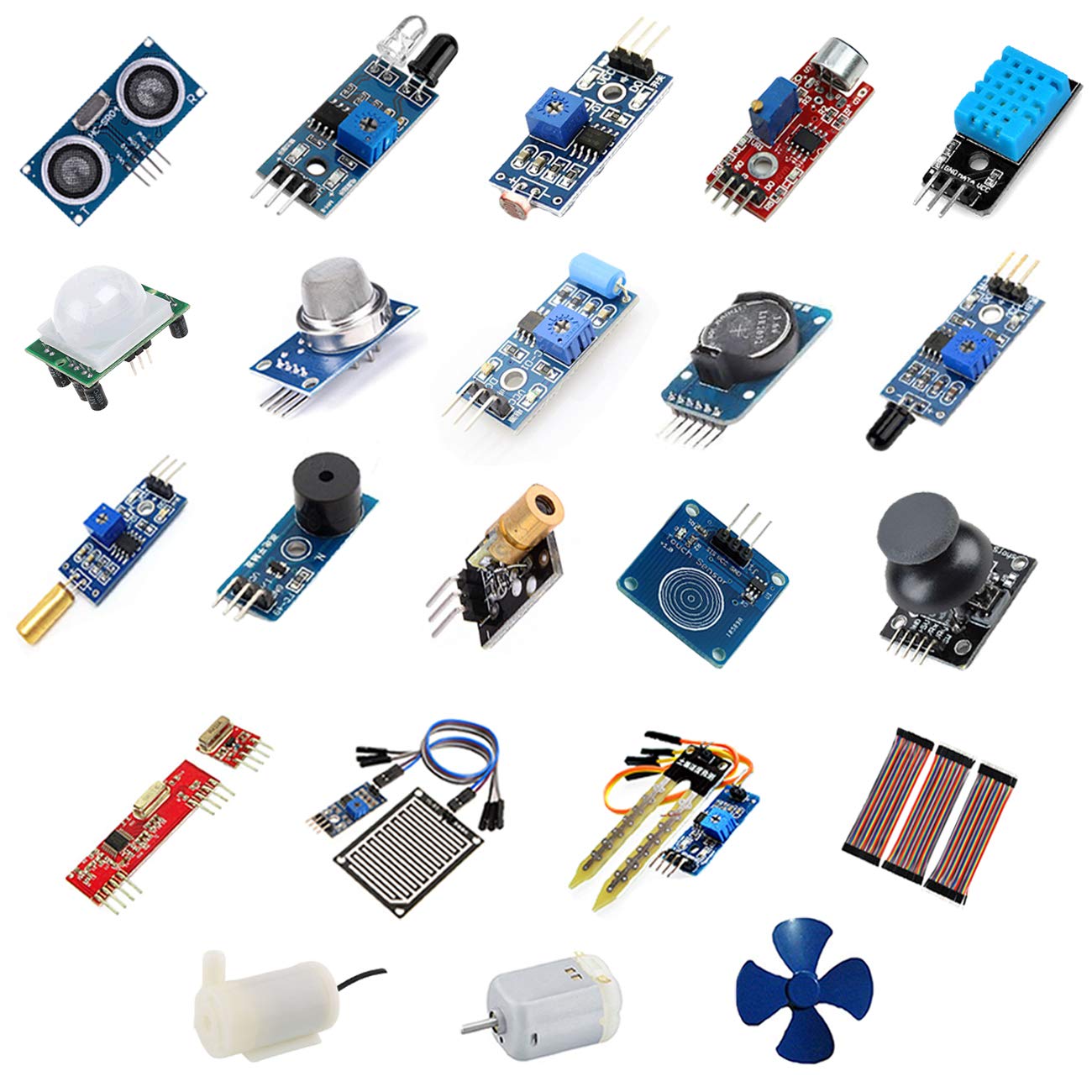

Sensors are the eyes and ears of your IoT projects. They let your microcontroller or Raspberry Pi gather real-world data and respond smartly. Here are five must-have sensors for beginners and advanced makers alike.

1. PIR Motion Sensor

Detects movement of humans or animals. Perfect for security alarms, automatic lights, or interactive installations.

2. DHT11 Temperature & Humidity Sensor

A simple sensor that measures environmental conditions. Common in weather stations, greenhouses, or smart homes.

3. Ultrasonic Sensor (HC-SR04)

Measures distance using sound waves. Used in obstacle avoidance robots, parking assistance, or liquid level detection.

4. IR Sensor

Infrared sensors detect objects or signals from remotes. Often used in line-following robots or TV remotes.

5. Gas Sensor (MQ series)

Detects gases like LPG, CO, or smoke. Essential for safety systems in kitchens, industries, or labs.

Why These Sensors?

Together, these five sensors cover motion, environment, distance, object detection, and safety. They form the backbone of most IoT and robotics projects.

Projects You Can Try

• Smart doorbell with PIR + camera.
• Weather dashboard using DHT11.
• Obstacle avoiding car with ultrasonic sensor.
• Fire alarm using gas sensor + buzzer.

By experimenting with these sensors, you’ll learn how machines interact with the physical world—opening the door to endless creative possibilities in electronics and IoT.
